Henry J
Jim Belan

1. 1987 2 wheel drive S-10 Blazer subframe/ V-8 mounting kit, including shorty headers.

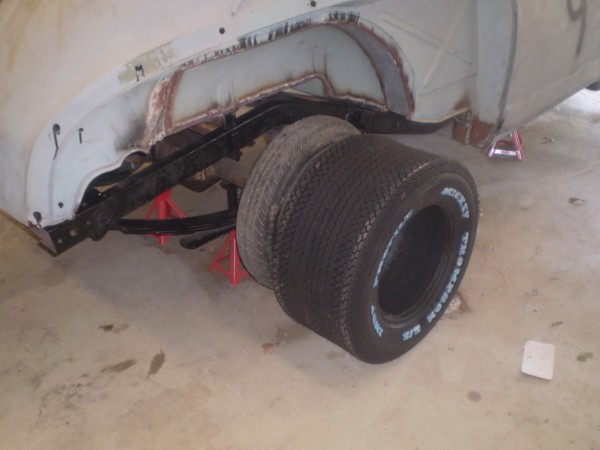

2. Rear end mini tubbed 7 inches to fit 50 series Mickey Thompsons, and keep some back seat. Brand new rear tires included. Rear end narrowed, Ford 9in. 355 gears. Axles were cut and resplined, drums were redrilled to match GM wheel bolt pattern. 15x10 with 3.5in. backspacing rear wheels are needed. Rear end shackles moved to top of frame for 3in. rear drop.

3. Brand new front floors (From blazer)including tranny tunnel, Blazer seats, original Henry J rear. I don't have back seat. Brand new installed rocker panels. Doors close perfect.

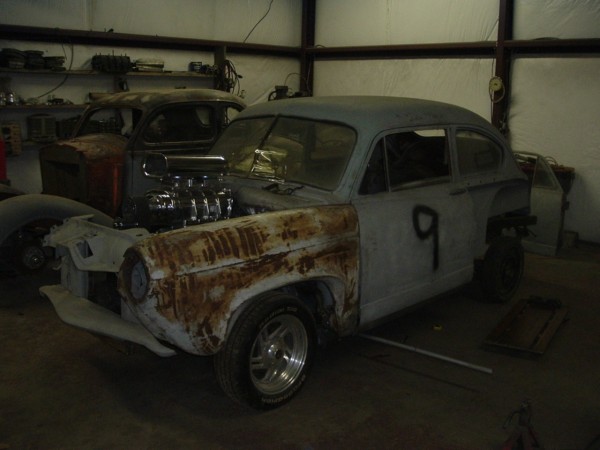

4. New custom recessed firewall. Built around small block Chevy. Engine in pictures not included.

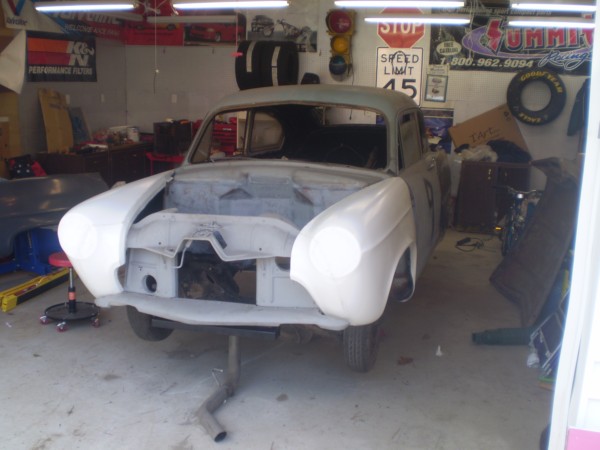

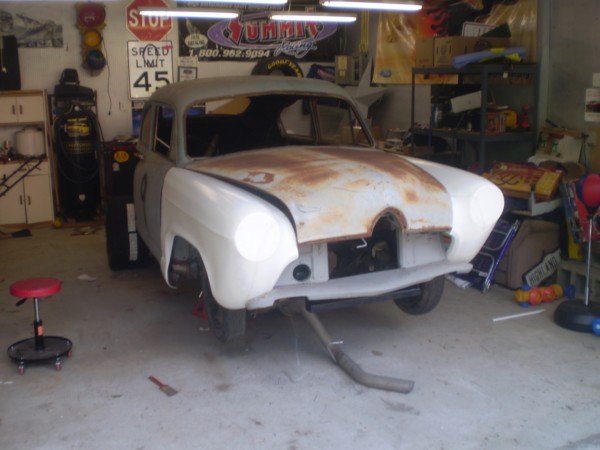

5. Brand new fiberglass front fenders and rear quarter panels.

6.The new rear tires, 3 core aluminium Griffin radiator. New polygraphite bushing kit. Nice rear window. I don't have hood hinges. I have inner fenders, decent 3 bar grille, headlight buckets.

The body is solid and that the doors and back end need a little body work.


jrbelan@hotmail.com

                 Thank you,
                 Jim Belan
