HJC Green Project J 1-14-2004 Fixing the shifting problem. |
After taking off the box that all of the shifting goes through. One of the reasons

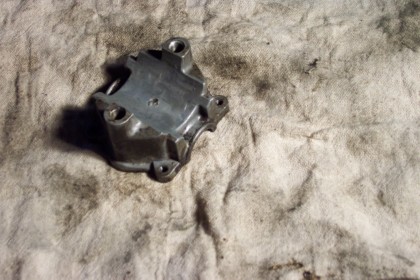

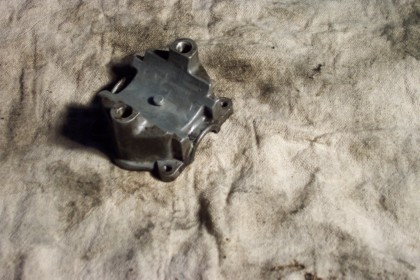

for the hard shifing was found. A broken pin on the shifting box. Shown here with and without post. |

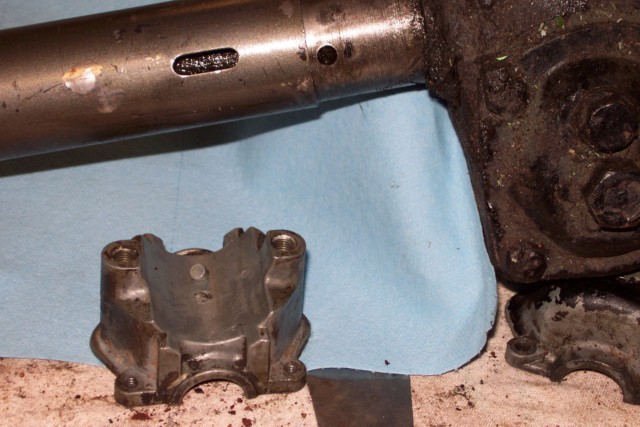

This post is supposed to hold the box in place on the streering colum, by going through
this slot and locating in that hole at the same time. You could try and
reef down on the bolts that hold down the box but that would really not work to
well, or for long and might break the aluminium box that controls the shifting. |

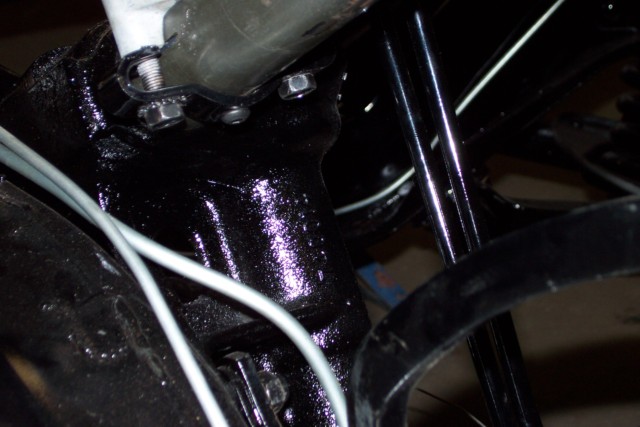

Solution to fix this problem is shown here. On the underside of the shifting box
there is a bracket to clamp the box down to the colum. Drilling a hole through
this and into the metal of the colum. Thread this hole and put in a bolt to hold
it in place. This should stop the steering colum from rotating and help with
the hard shifting. |
